Factory of AVANTTECH Co., Ltd

Date Submitted: 25/11/2023 10:09 AM

The project is built on a land area of 17,997.0m2 (1.7997 ha) of Minh Hung - Sikico Industrial Park, which is expected to attract advanced production, not using much labor, including industrial zones. Functions such as: Factory construction area, operating center area, logistics service areas, standard factory warehouses, bonded warehouses, technical infrastructure works and other utilities serving services for people working in the Industrial Park, the FACTORY project of AVANT TECH COMPANY LIMITED is planned in the factory construction area in accordance with the planning orientation of the Industrial Park.

Factory of AVANTTECH Co., Ltd. (Binh Phuoc)

That's why the investment in building the factory is to: produce golf clubs, counterweight washers, metal screws, metal accessories, produce metal components, molds, tools, instruments, machines. drills, accessories, metal hardware, hardware components; Promote economic development, attract investment and promote rapid development of Industrial Parks in particular and Binh Phuoc in general, solve many labor problems for localities, people do not have to migrate to other areas. Big city to work, you can work at home and still have income and savings; Solve problems of family thoughts and feelings; Limit social pressure on big cities.

The project is planned at the address: Lot A2-1, Road N1, Minh Hung - Sikico Industrial Park, Dong No commune, Hon Quan district, Binh Phuoc province, Vietnam; The limited scope of the land is as follows.

The construction scale of the project is 17 9997.0m2 with boundaries as follows:

North: adjacent to the isolated green area of Minh Hung Sikico industrial park.
West: adjacent to the center road of Minh Hung Sikico industrial park.
South: adjacent to N1 road, Minh Hung Sikico industrial park.
East: adjacent to Jing Cheng Company.

AVANTTECH Co., Ltd. factory project is organized and planned by Hung Nghiep Phu Construction Investment Co., Ltd.:

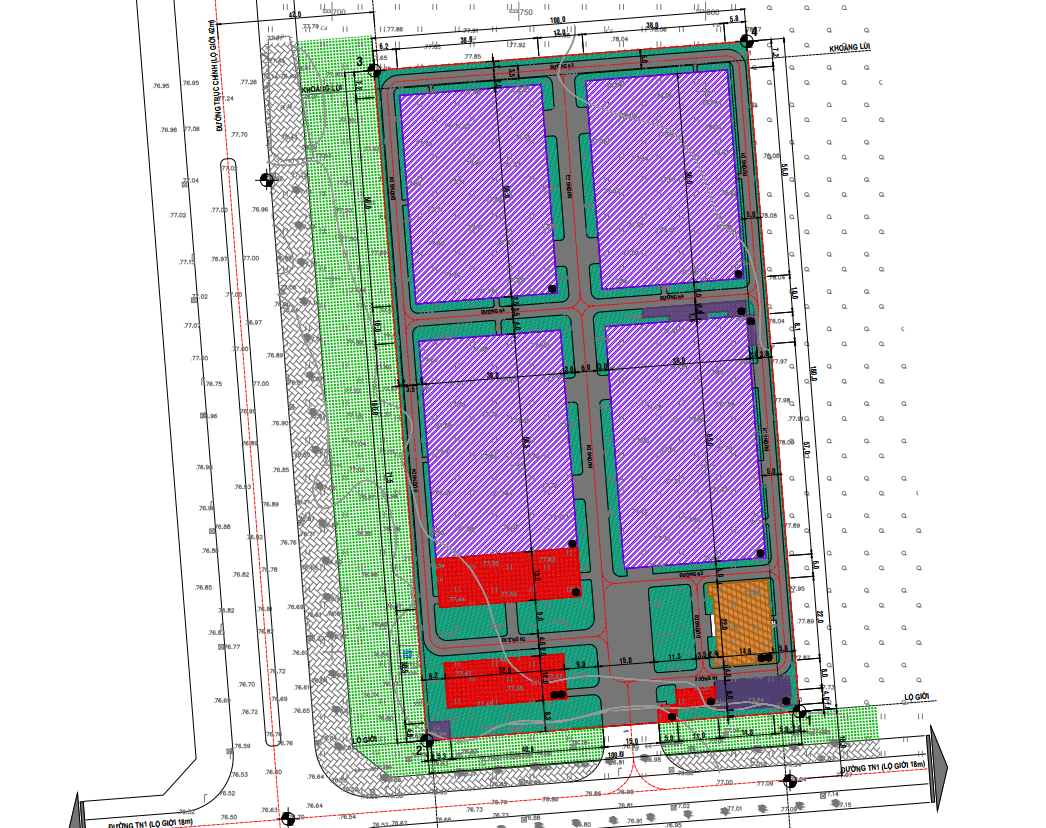

AVANTTECH factory land use planning map

Construction scale is 8,949.00m2, accounting for 49.72% including:

Factory 1: Construction lot symbol CTSX-1.

Scale: 2,470.00 m2, accounting for 13.72%;
Number of floors: 01 floor;
Height: 11.5m;

Factory 2: Construction lot symbol CTSX-2.

Scale: 2,130.00 m2, accounting for 11.82%;
Number of floors: 01 floor;
Height: 11.5m;

Factory 3: Construction lot symbol CTSX-2.

Scale: 2,130.00 m2, accounting for 11.82%;
Number of floors: 01 floor;
Height: 11.5m;

Factory 4: Construction lot symbol CTSX-4.

Scale: 2,220.00 m2, accounting for 12.35%;
Number of floors: 01 floor;
Height: 11.5m;

Land for construction of agencies and headquarters (Office): Construction scale of 333.00 m2, accounting for 1.85% including: Office building: Lot symbol CT1.

Scale: 333.00 m2, accounting for 1.85%;
Number of floors: 02 floors;
Height: 11.5m (Calculated from cote +0.00);

Service land: Construction scale is 953.00m2, accounting for 5.29% including:

Dining room: Construction plot symbol CT-2.

Scale: 494.00 m2, accounting for 2.74%;
Number of floors: 01 floor;
Height: 11.5m;
Floor elevation of first floor: +0.00
High difference with road yard: +0.20

2-wheeled garage: Construction plot symbol CT-3.

Scale: 384.00 m2, accounting for 2.13%;
Number of floors: 02 floors;
Top height: 7m.

4-wheeled garage: Construction lot symbol CT-4.

Scale: 52.00 m2, accounting for 0.29%;
Number of floors: 01 floor;
Top height: 4.5m;

Security garage: Construction lot symbol CT-5.

Scale: 22.50 m2, accounting for 0.13%;
Number of floors: 01 floor;
Top height: 3.5m

Land for construction of technical infrastructure: Scale of 290.00 m2, accounting for 1.61% including

Wastewater treatment area: Symbol of lot CTHTKT-1.

Scale: 90.06 m2, accounting for 0.5%;
Number of floors: 01 floor;
Height: 2.58m;

Underground water tank area: Symbol of lot CTHTKT-2.

Scale: 158.40 m2, accounting for 0.88%;
Number of floors: Underground tank;
Height: Underground tank;

Power station area: Symbol of lot CTHTKT-3.

Scale: 25.44 m2, accounting for 0.14%;
Number of floors: 01 floor;
Height: Not determined;

Toilet area: Symbol of lot CTHTKT-4.

Scale: 16.10 m2, accounting for 0.09%;
Number of floors: 01 floor;
Height: 3.25m;

Green land: Scale 3,702.00m2, accounting for 20.57% including: Scale 3,702.00m2, accounting for 20.57% including:

Plants inside the factory isolate the factory from outside traffic and neighboring areas.
Green trees around factories adjacent to internal roads.
Green trees in the office area.

Traffic land: Scale 3,771.00 m2, accounting for 20.95%, road surface width within the office area is 4m, road surrounding the factories is from 3.5m to 4m.

Lễ khởi công nhà máy công ty TNHH AVANTTECH - Bình Phước (06/2023)

Ngày 30/06/2023, dự án nhà máy công ty TNHH AVANTTECH tại KCN Minh Hưng - SIKICO, Bình Phước đã được chủ đầu tư và đơn vị xấy dựng HƯNG NGHIỆP PHÚ phối hợp thực hiện lễ khởi công, chính thức đưa dự án đi vào giai đoạn xây dựng. Đây cũng là một dấu mốc và là bước tiến quan trọng của xây dựng HƯNG NGHIỆP PHÚ, khi mà tình hình thị trường xây dựng còn đang gặp nhiều khó khăn do ảnh hưởng của suy thoái kinh tế toàn cầu. Nhưng với tiêu chí hoạt động xuyên suốt trong nhiều năm: "BỀN VỮNG THEO THỜI GIAN", HƯNG NGHIỆP PHÚ đã và đang nhận được sự tin tưởng của các chủ đầu tư trong và ngoài nước tin tưởng giao trọng trách xây dựng các nhà máy tại khu vực miền Nam. Với dự án nhà máy công ty TNHH AVANTTECH được đầu tư xây dựng giai đoạn một lên đến 96 tỷ đồng. Đánh dấu sự phát triển của của HƯNG NGHIỆP PHÚ tại thị trường công nghiệp BÌNH PHƯỚC.
